產品名稱：
|

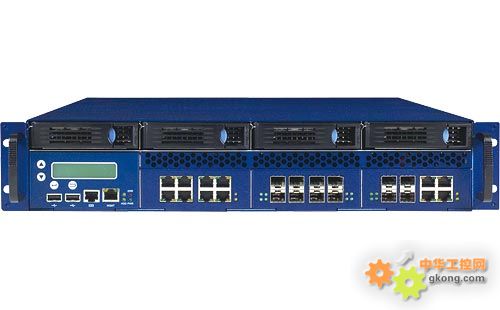

新漢網絡安全——NSA 7110W
|
|
型 號：
|
NSA 7110W
|
|
價 格：
|
0.00
|
|
品 牌：
|
2562
|
|
|
|
Intel® Xeon™ 5500系列處理器,2U機架式平臺,可達25GbE LAN
產品亮點
機箱：DTX-205A
主板：NSA1120
CPU：INTEL至強5500
內存：16G DDR3
硬盤：500G SATA
電源：400W冗余電源
整機網口需選配，最多可支持26個千兆網口，可支持3個10G網絡接口,1個VGA口，1個CONSOLE口，2個USB口，1個板載CF卡卡槽，1個PCI-E*8插槽，2個PCI-E*4插槽，2個PCI-X插槽。可擴展網口模塊，具體可擴展規格：2個電口2個光口、4個電口、4個光口、4個電口4個光口、8個電口、8個光口。
特點詳情 2U機架式網絡安全平臺，整機尺寸426mmx 580mm x 88m。整機采用雙INTEL XEON 5500CPU ,最高支持24G內存，可擴展26個千兆網口，3個10GXFP/SFP+網絡接口，支持PCIe EM以太網卡，支持PCI-X和PCIe x8擴展槽，板載CF槽，支持（1+1）冗余電源，支持LCD模塊。
|
Specifications |
|
主板 |
- NSB 7110W
- Support Intel® Xeon™ 5500/5600 series Processors, LGA1366 socket
- Support 4.8/5.86/6.4 GT/s QPI Speed
- Intel® 5520 and ICH10R Chipset
|
|
內存 |
- 6 x 240-pin DDR3 800/1066 DIMM Sockets, up to 24GB ECC® and ECC DDR3 SDRAM
|
|
網絡特點 |
- Swappable LAN Module
- LAN Chip: Intel® 82574L/82575EB/82598EB
- Support 10/100/1000 link speed
- LAN BYPASS: by model *Please see module list information in Datasheet (PDF)
|
|
擴展 |
- 1 x PCIe x8 Slot (Default)
- 2 x PCIe x4 Slot (Optional)
- 2 x PCI-X Slot (Optional)
|
|
I/O接口-前面板 |
- Support 2x16 Characters LCD module, PIO interface
- Power status / HDD status / LAN status / Bypass status LEDs
- 4 x 3.5" HDD Swappable bays
- 3 x LAN Module bays
- 2 x USB 2.0 ports
- 1 x RJ45 type Console port
- 1 x software button
- 1 x Managment LAN ports
|
|
I/O接口-后面板 |
- 2 x Swappable System FANs
- 1 x Expansion slot for PCIe x8
- 2 x Expansion slots for PCI-X (Optional)
- 2 x Expansion slots for PCIe x4 (Optional)
- 1 x VGA Port
|
|
存儲設置 |
- 1 x on-board CompactFlash socket
- 1 x USB-DOM device space
- 1 x SATA-DOM device space
|
|
電源輸入 |
- 460W 1+1 ATX Redundant Power Supply
|
|
體積 |
- Chassis Dimension: 426mm x 580mm x 88mm
- Carton Dimension: 640mm x 800mm x 310mm
|
|
重量 |
- Without Packing: 19kg
- With Packing: 25kg
|
|
認證 |
- CE approval
- FCC Class A
- UL
|
訂購信息
- NSA 7110W (P/N:10S00711002X0)Support Intel® Xeon™ 5500/5600 series processors, 6 DDR3 memory slots, Max, Gigabit LAN ports, CompactFlash Socket, VGA, USB port, One PCIe x 8 Expansion Slot
|
|
|
