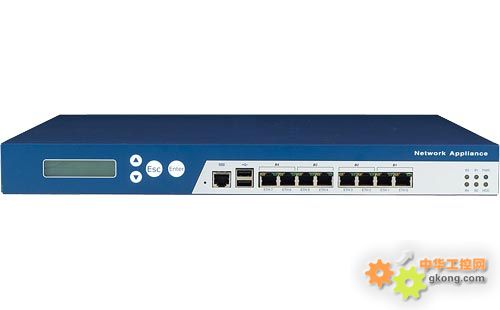

產品名稱：
|
新漢網絡安全——NSA 3110
|
|
型 號：
|
NSA 3110
|
|
價 格：
|
0.00
|
|
品 牌：
|
2562
|
|
|
|
Intel® Core™ 2 Quad/Core™ 2 Duo/Pentium® Dual-Core/ Celeron® 1U機架式整機，帶8網口
產品亮點
機箱：DTX-105B
主板：NSB 3110
CPU：INTEL Q9300
內存：4G DDR3
硬盤：500G SATA
電源：300W電源(可選配6個千兆網口)
4個intel 82574L千兆網口（支持BY PASS功能）,1個VGA口，1個CONSOLE口，2個USB口，1個板載CF卡卡槽，1個PCI-E插槽，1個MINI-PCI插槽�？蓴U展網口模塊，具體可擴展規格：2個電口2個光口、4個電口、4個光口、4個電口4個光口、8個電口、8個光口。
特點詳情
1U機架式網絡安全平臺，整機尺寸426mmx 238mm x 44mm，主板采用INTELG41芯片組，CPU可采用INTEL酷睿四核處理器，整機提供1個PCI擴展插槽。機器支持BYPASS功能，網絡喚醒功能。機箱支持前端LCD模塊。
|
Specifications |
|
主板 |
- NSB 3110
- Support Intel® Core™ 2 Quad/Core™ 2 Duo/Pentium® Dual-Core/Celeron® Processors in 775-pin, LGA775 package
- Support 800/1066/1333 MHz FSB
- Intel® G41 and ICH7R Chipset
|
|
內存 |
- 2 x 240-pin DDR III 1066 DIMM Sockets, up to 4GB Non-ECC DDR3 SDRAM
|
|
網絡特點 |
- Lan Chipset: Intel® 82574L
- Support 10/100/1000 link speed
- LAN Bypass: 4 pairs
|
|
擴展 |
- Support 1 x PCI-E*8 Slot
- Support 1 x Mini-PCI Slot
|
|
I/O接口-前面板 |
- Support 2 x 16 Characters LCD module, PIO interface
- HDD access/Power/LAN status/Bypass status LEDs
- 2 x USB 2.0 ports
- 1 x RJ45 type Console port
- 1 x Software button
- 8 x Copper LAN ports
|
|
I/O接口-后面板 |
- 1 x Expansion slot
- 1 x VGA port
- 1 x Power switch
|
|
設置 |
- 1 x On-board CompactFlash Socket
- 1 x Internal 3.5" HDD driver bay
|
|
電源輸入 |
- Support 200W ATX Power Supply
|
|
尺寸規格 |
- Chassis Dimension: 426mm (W) x 365mm (D) x 44mm (H)
- Carton Dimension: 560mm (W) x 570mm (D) x 190mm (H)
|
|
認證 |
- CE approval
- FCC Class A
- UL
|
|
重量 |
- Without packing: 6.5kg
- With packing: 10kg
|
訂購信息
- Barebone NSA3110(P/N : 10S00311000X0)Support Intel®/Core™ 2 Quad/Core™ 2 Duo/Pentium® Dual-Core/Celeron®,2 DDR III memory slots, 8 Gigabit Ethernet LAN ports, Compactfl ash Socket,VGA, USB port, One PCI-e x8 Expansion slot without LCM and Membrane.
- Barebone NSA3110-C4(P/N : 10S00311000X0)Support Intel®/Core™ 2 Quad/Core™ 2 Duo/Pentium® Dual-Core/Celeron®,2 DDR III memory slots, 4 Gigabit Ethernet LAN ports, Compactfl ash Socket,VGA, USB port, One PCI-e x8 Expansion slot without LCM and Membrane.
|
|
|
