產品名稱：
|
新漢網絡安全——DNA1120
|
|
型 號：
|
DNA1120
|
|
價 格：
|
|
|
品 牌：
|
2562
|
|
|
|
Intel® Atom™ D525 Dual Core/ D425 Single Core 1.8GHz處理器， 1U 機架式平臺， 6 PCIe GbE LAN 接口
產品亮點
機箱：DTX-105A
主板：NSB1120
CPU： INTEL ATOM D525
內存：1G DDR3
硬盤：320G SATA
電源：200W電源(可選配4個千兆網口)
6個intel 82583千兆網口（支持BY PASS功能）,1個VGA口，1個CONSOLE口，2個USB口，1個板載CF卡卡槽，1個PCI插槽，1個MINI-PCI插槽。
特點詳情

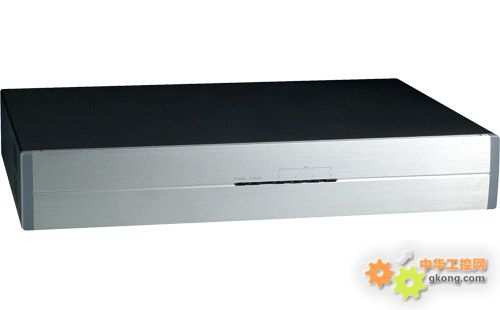

1U機架式網絡安全平臺，整機尺寸426mmx 238mm x 44mm，CPU采用凌動D525 1.8G，整機提供1個PCI擴展插槽。機器支持BYPASS功能，網絡喚醒功能。機箱支持前端LCD模塊。
|
Specifications |
|
主板 |
- NSB 1120
- 支持Intel® Atom™ D525 Dual Core/ D425 Single Core 1.8GHz處理器
- Intel® ICH8M Chipset
|
|
內存 |
- 1 x 240-pin DDR3 800 SO-DIMM插槽,可達2GB Non-ECC SDRAM
|
|
LAN特點 |
- LAN Chip: Intel® 82583V
- Support 10/100/1000 link speed
- LAN Bypass: 2 pairs
|
|
擴展 |
|
|
I/O接口-前面板 |
- Support 2 x 16 Characters LCD Module, PIO interface (Optional)
- Power status/HDD status/LAN status/Bypass status LED
- 2 x USB 2.0 Ports
- 1 x RJ45 type Console Port
- 1 x software button
- 6 x Copper LAN Ports
- 1 x PCI Expansion (Optional)
|
|
I/O接口-后面板 |
- 2 x USB 2.0 Ports
- 1 x VGA Port
|
|
設置 |
- 1 x CompactFlash Socket (Optional)
- 1 x Intelnal 3.5" HDD bay
- 1 x SATA-DOM device space
|
|
電源輸入 |
|
|
規格尺寸 |
- Chassis Dimension: 426mm x 238mm x 44mm
- Carton Dimension: 556mm x 384mm x 185 mm
|
|
重量 |
- Without Packing: 5.6kg
- With Packing: 8kg
|
|
通過認證 |
- CE approval
- FCC Class A
- UL
|
訂購信息
- NSA 1120 (P/N: 10S00112000X0)Intel® Atom™ D425 Single Core 1.8 GHz Processor, 1 DDR3 memory slot, 6 Gigabit LAN ports with two pairs bypass, VGA, USB port, w/o LCM
- NSA 1120A (P/N: 10S00112001X0)Intel® Atom™ D525 Dual Core 1.8 GHz Processor, 1 DDR3 memory slot, 6 Gigabit LAN ports with two pairs bypass, VGA, USB port, w/o LCM
- NSA 1120-C4 (P/N: 10S00112002X0)Intel® Atom™ D425 Single Core 1.8 GHz Processor, 1 DDR3 memory slot, 4 Gigabit LAN ports with two pairs bypass, VGA, USB port, w/o LCM
- NSA 1120A-C4 (P/N: 10S00112003X0)Intel® Atom™ D525 Dual Core 1.8 GHz Processor, 1 DDR3 memory slot, 4 Gigabit LAN ports with two pairs bypass, VGA, USB port, w/o LCM
- NAS 1120/ NSA 1120A LCM & MEMBRANE (P/N: 88S00112000X0)
- NSA 1120-C4/ NSA 1120A-C4 LCM & MEMBRANE (P/N: 88S0011201X0)
, bidi-font-size: 12.0pt; mso-bidi-font-family: 宋體; mso-font-kerning: 0pt">NSA 1120A-C4 (P/N: 10S00112003X0) Intel® Atom™ D525 Dual Core 1.8 GHz Processor, 1 DDR3 memory slot, 4 Gigabit LAN ports with two pairs bypass, VGA, USB port, w/o LCM
NAS 1120/ NSA 1120A LCM & MEMBRANE (P/N: 88S00112000X0)
NSA 1120-C4/ NSA 1120A-C4 LCM & MEMBRANE (P/N: 88S0011201X0)
, s: list 36.0pt"> NSA 1120A-C4 (P/N: 10S00112003X0)Intel® Atom™ D525 Dual Core 1.8 GHz Processor, 1 DDR3 memory slot, 4 Gigabit LAN ports with two pairs bypass, VGA, USB port, w/o LCM
NAS 1120/ NSA 1120A LCM & MEMBRANE (P/N: 88S00112000X0)
NSA 1120-C4/ NSA 1120A-C4 LCM & MEMBRANE (P/N: 88S0011201X0)
, bidi-font-size: 12.0pt; mso-bidi-font-family: 宋體; mso-font-kerning: 0pt">NSA 1120A-C4 (P/N: 10S00112003X0) Intel® Atom™ D525 Dual Core 1.8 GHz Processor, 1 DDR3 memory slot, 4 Gigabit LAN ports with two pairs bypass, VGA, USB port, w/o LCM
NAS 1120/ NSA 1120A LCM & MEMBRANE (P/N: 88S00112000X0)
NSA 1120-C4/ NSA 1120A-C4 LCM & MEMBRANE (P/N: 88S0011201X0)
|
|
|
