Features
＊Supports a 32-bit 3.3 V or 5 V PCI bus
＊16-CH single-ended or 8-CH differential analog input
＊Up to 250 kS/s sampling rate
＊Programmable input range: +/-5 V, +/-1 V, +/-0.5 V, +/-0.2 V
＊2-CH 16-bit static analog output
＊Programmable function I/O
＊Auto-calibration feature
Introduction
The ADLINK PCI-9221 is a 16-bit high-resolution and low-cost multi-function DAQ card, with 16-CH singleended or 8-CH differential input capable of up
to 250 kS/s sampling rate. In addition, the PCI-9221 comes with a 2-CH 16bit
static analog output and programmable function I/O.The software-programmable function I/O supports a variety ofapplications,including TTL digital I/O,
generalpurpose timer/counter, encoder input, and PWM output. The flexible
function I/O makes the PCI-9221 the best single-board solution for combined
data acquisition and simple motion control functionalities. Ideal for
manufacturing, laboratory research, and factory automation, the PCI－9221
comes with all the functions you need at an affordable price.
Ordering Information

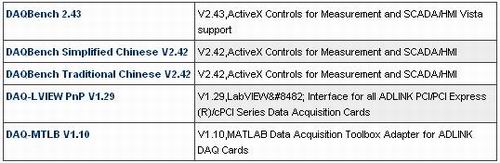

Associated Software
